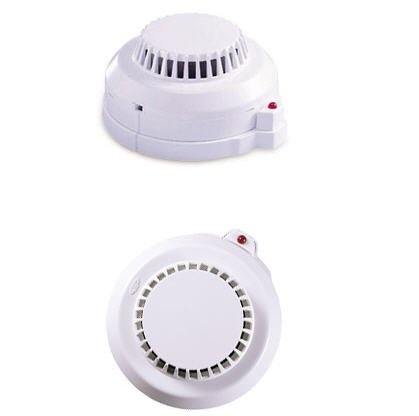

Model | AH-8321 | ||
Type | 2-wire | 3-wire | 4-wire |
Alarm Contact | N/A | N/A | 0.8A @30V DC |
0.4A @125V AC | |||
Voltage Range | 12 ~ 30V DC | ||
Alarm Current | 35mA | 35mA | 30mA |
@24V DC 470Ω | |||
Permissible Current | 185mA | ||
Standby Current | Under 30μA | ||
Sensitivity Setting | Comply to UL268, EN54, CNS | ||
Ambient Temperature | -10℃ ~ +55℃ | ||
Material | Fire-proof plastic | ||
Dimensions | 102mm(Dia.) x 50mm(H) | ||
Weight | About 170g | ||
Color | White |
